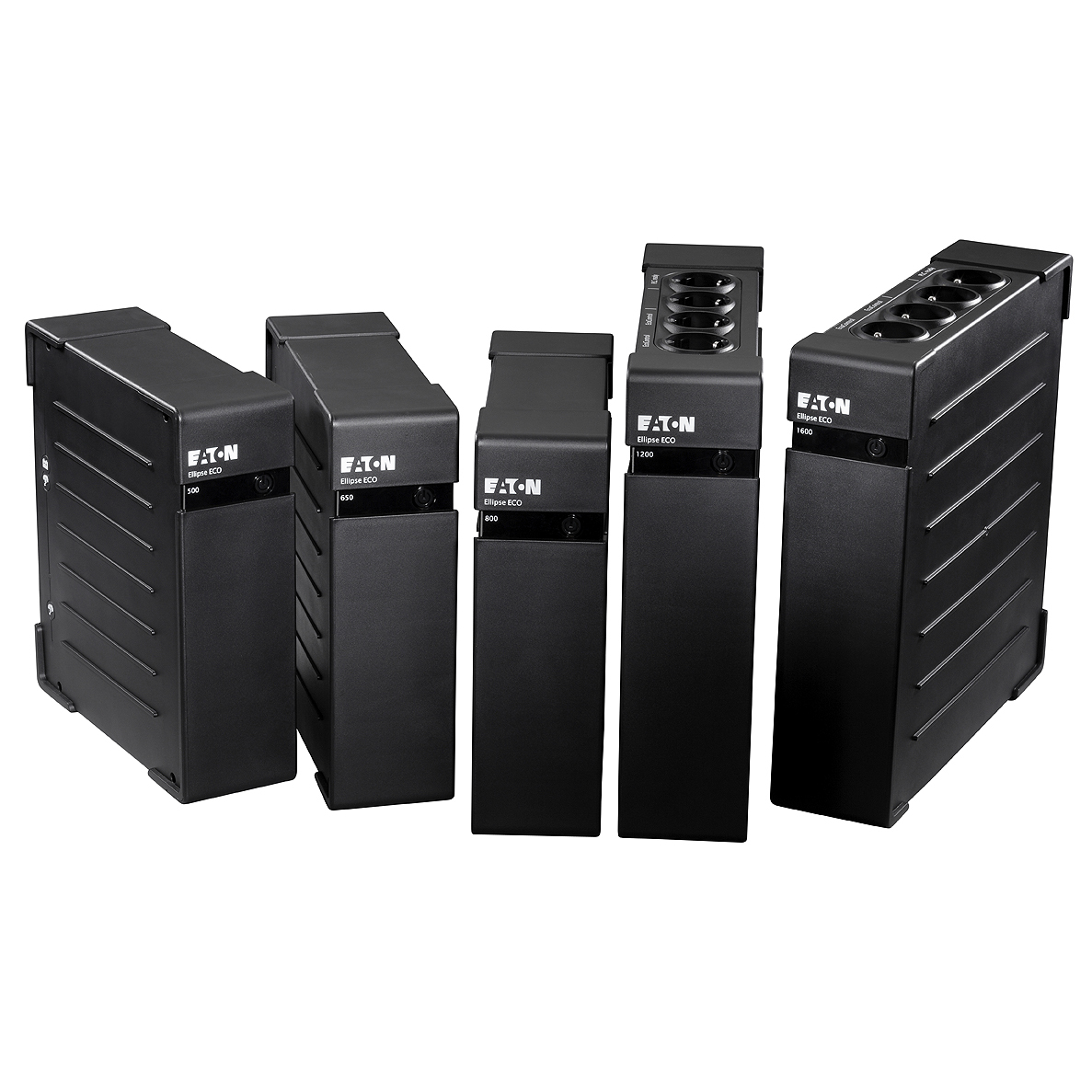

Eaton Ellipse ECO UPS
The Eaton Ellipse ECO UPS is a single-phase standby/offline UPS, with power ratings from 650 – 1600 VA. The UPS is available in a tower or rack form factor. The Ellipse ECO UPS includes a high-performance surge protection device in compliance with IEC 61643-1: Low-voltage surge protective devices and line protection for Ethernet, internet, and telephone lines
Key Technologies:Â EcoControl for energy savings
Applications:Â Suitable for residences and small business with PC and workstations, internet access point, point of sales equipment, business telephony
Compliance with standards:Â CE, CB, RoHS, KC, IEC 61643-1
Runtime graphs:Â View Ellipse ECO UPS runtime graphs
Brochure:Â Download Ellipse ECO UPS brochure
650 VA model specifications
General |
|
| Configuration | Rack/Tower |
| Part Number | EL800USBIEC |
| Color | Black |
| Rating (VA/Watts) | 800/500 |
| EcoControl | Yes up to 20% energy saving (automatic deactivation of idle peripherals) |
| Dimensions (H x W x D, mm) | 263 x 81 x 235 |
| Weight (kg) | 4.1 |
| Warranty | 3 years on electronics, 2 years on battery |
Electrical Input |
|
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 184 V – 264 V (adjustable to 161 V – 284 V) |
| Nominal Voltage | 230 V |
| Operating Frequency | 50-60 Hz autoselect |
Electrical Output |
|
| Voltages | 230 V (adjustable to 220 V, 230 V, 240 V) |
| Output Receptacles |
(3) IEC-320-C13
(1) IEC-320-C13 surge only
|
| PowerLine compatibility | 1 PLC-ready outlet |
| Power Cables | NA |
Battery |
|
| Battery Type | Replaceable sealed lead acid |
| Battery Replacement Indicators | LED + audible alarm |
| Battery Test | Yes (Automatic) |
| Cold start (No mains power) | Yes |
| Deep Discharge Protection | 4 hours |
Communications |
|
| Communication Ports | USB port ( cable supplied) |
| Power Management Software | Eaton Intelligent Power software delivered as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
Environmental & Standards |
|
| Surge Protection | Surge protection device compliant with IEC 61643-1 |
| Performance – Safety – EMC | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark |
| Data Line Protection | Tel/Fax/Modem/Internet and Ethernet |
800 VA model specifications
General |
|
| Configuration | Rack/Tower |
| Part Number | EL800USBIEC |
| Color | Black |
| Rating (VA/Watts) | 800/500 |
| EcoControl | Yes up to 20% energy saving (automatic deactivation of idle peripherals) |
| Dimensions (H x W x D, mm) | 263 x 81 x 235 |
| Weight (kg) | 4.1 |
| Warranty | 3 years on electronics, 2 years on battery |
Electrical Input |
|
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 184 V – 264 V (adjustable to 161 V – 284 V) |
| Nominal Voltage | 230 V |
| Operating Frequency | 50-60 Hz autoselect |
Electrical Output |
|
| Voltages | 230 V (adjustable to 220 V, 230 V, 240 V) |
| Output Receptacles |
(3) IEC-320-C13
(1) IEC-320-C13 surge only
|
| PowerLine compatibility | 1 PLC-ready outlet |
| Power Cables | NA |
Battery |
|
| Battery Type | Replaceable sealed lead acid |
| Battery Replacement Indicators | LED + audible alarm |
| Battery Test | Yes (Automatic) |
| Cold start (No mains power) | Yes |
| Deep Discharge Protection | 4 hours |
Communications |
|
| Communication Ports | USB port ( cable supplied) |
| Power Management Software | Eaton Intelligent Power software delivered as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
Environmental & Standards |
|
| Surge Protection | Surge protection device compliant with IEC 61643-1 |
| Performance – Safety – EMC | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark |
| Data Line Protection | Tel/Fax/Modem/Internet and Ethernet |
1200 VA model specifications
General |
|
| Configuration | Rack/Tower |
| Part Number | EL1200USBIEC |
| Color | Black |
| Rating (VA/Watts) | 1200/750 |
| EcoControl | Yes up to 25% energy saving (automatic deactivation of idle peripherals) |
| Dimensions (H x W x D, mm) | 305 x 81 x 312 |
| Weight (kg) | 6.7 |
| Warranty | 3 years on electronics, 2 years on battery |
Electrical Input |
|
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 184 V – 264 V (adjustable to 161 V – 284 V) |
| Nominal Voltage | 230 V |
| Operating Frequency | 50-60 Hz autoselect |
Electrical Output |
|
| Voltages | 230 V (adjustable to 220 V, 230 V, 240 V) |
| Output Receptacles |
(4) IEC-320-C13
(4) IEC-320-C13 surge only
|
| PowerLine compatibility | 1 PLC-ready outlet |
| Power Cables | NA |
Battery |
|
| Battery Type | Replaceable sealed lead acid |
| Battery Replacement Indicators | LED + audible alarm |
| Battery Test | Yes (Automatic) |
| Cold start (No mains power) | Yes |
| Deep Discharge Protection | 4 hours |
Communications |
|
| Communication Ports | USB port ( cable supplied) |
| Power Management Software | Eaton Intelligent Power software delivered as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
Environmental & Standards |
|
| Surge Protection | Surge protection device compliant with IEC 61643-1 |
| Performance – Safety – EMC | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark |
| Data Line Protection | Tel/Fax/Modem/Internet and Ethernet |
1600 VA model specifications
| General | |
| Configuration | Rack/Tower |
| Part Number | EL1600USBIEC |
| Color | Black |
| Rating (VA/Watts) | 1600/1000 |
| EcoControl | Yes up to 25% energy saving (automatic deactivation of idle peripherals) |
| Dimensions (H x W x D, mm) | 305 x 81 x 312 |
| Weight (kg) | 7.8 |
| Warranty | 3 years on electronics, 2 years on battery |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 184 V – 264 V (adjustable to 161 V – 284 V) |
| Nominal Voltage | 230 V |
| Operating Frequency | 50-60 Hz autoselect |
| Electrical Output | |
| Voltages | 230 V (adjustable to 220 V, 230 V, 240 V) |
| Output Receptacles |
(4) IEC-320-C13
(4) IEC-320-C13 surge only
|
| PowerLine compatibility | 1 PLC-ready outlet |
| Power Cables | NA |
| Battery | |
| Battery Type | Replaceable sealed lead acid |
| Battery Replacement Indicators | LED + audible alarm |
| Battery Test | Yes (Automatic) |
| Cold start (No mains power) | Yes |
| Deep Discharge Protection | 4 hours |
| Communications | |
| Communication Ports | USB port ( cable supplied) |
| Power Management Software | Eaton Intelligent Power software delivered as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
| Environmental & Standards | |
| Surge Protection | Surge protection device compliant with IEC 61643-1 |
| Performance – Safety – EMC | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark |
| Data Line Protection | Tel/Fax/Modem/Internet and Ethernet |
