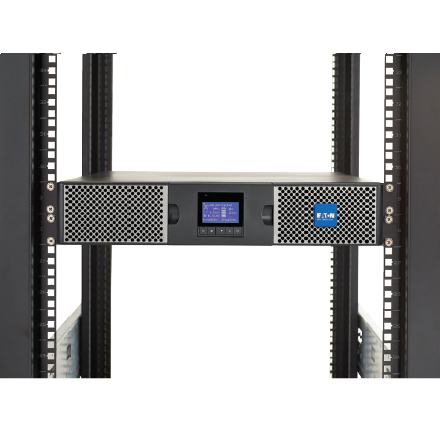

Eaton 9PX Lithium-ion UPS
The Eaton 9PX Lithium-ion UPS is a single-phase online UPS, with power ratings from 1000 VA – 6 kVA. The UPS is compatible with Lithium-ion UPS batteries, which are 40 percent smaller than VRLA batteries and have twice the lifespan, saving money on battery replacement costs and extra square footage for battery cabinets. The UPS is available in a flexible convertible tower or rack form factor. This UPS comes with Unity power factor (VA=W) 1.0. Increase battery run time for your application by adding extended battery modules (EBMs) to your UPS
Key technologies: ABM battery management, Eaton Hot Sync®
Applications: Suitable for commercial buildings, medium to larger enterprise data centers. For safety, energy efficiency and a low-carbon future. Also suitable for Distributed IT/Edge Computing. For faster set up at remote areas/branches
Compliance with standards: CE, CB, RoHS, Energy Star, KC
Runtime graphs:Â View 9PX Lithium-ion UPS runtime graphs
Brochure:Â Download 9PX Lithium-ion UPS brochure
9PX Li-ion Models & Specifications
| UPS Part no. | 9PX1000IRT2U-L | 9PX1500IRT2U-L | 9PX2200IRT2U-L | 9PX3000IRT2U-L | 9PX6KIRTN-L |
| Technology | ON-LINE double conversion with automatic bypass and Power factor correction system | ||||
| Power ratings | 1000 VA / 1000 W | 1500 VA / 1500 W | 2200 VA / 2200 W | 3000VA / 3000W | 6000VA / 5400W |
| Dimensions (H x W x D) / Weight | 86.5x440x450 mm / 15.6kg | 86.5 x 440 x 450 mm / 15.8kg | 86.5 x 440 x 605 mm / 22.1kg | 86.5 x 440 x 605 mm / 22.8kg | 130x440x685 mm / 36.9kg |
| Output connections | 8 IEC C13 (10A) outlets, including 2 programmable groups | 8 IEC C13 (10A) outlets, including 2 programmable groups | 8 IEC C13 (10A) + 2 IEC C19 (16A) outlets, including 2 programmable groups | 8 IEC C13 (10A) + 2 IEC C19 (16A) outlets, including 2 programmable groups | Terminal block + 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets, including 2 programmable groups |
| Input voltage range | 176V- 276V without derating (100V- 276V up to 40% load) | ||||
| Output voltage | 200/208/220/230/240V | ||||
| Frequency | Input range : 40-70 Hz, Output range : 50/60 Hz auto select or frequency converter mode | ||||
| Features | Li-Ion batteries with Battery management system, Cold start, Frequency converter, Energy Metering | ||||
| User interface | 4 LEDS + Multilingual LCD : access to measures, alarm messages and customization | ||||
| Communication | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay + 1 slot for optional communication card | ||||
| Warranty | 5 years full warranty | ||||
| Standards and certifications | IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CSA 22.2, CISPR22 Class B, FCC Class B, CE, CB, EAC, Energy Star | ||||
| EBM Part no. | 9PXEBM48RT1U-L | 9PXEBM72RT1U-L | 9PXEBM192RT2U-L | ||
| Dimensions (H x W x D) / Weight | 42.9x438x448 mm / 12kg | 42.9x438x603 mm / 17.4kg | 438×85.3×645 mm / 35.8kg | ||
