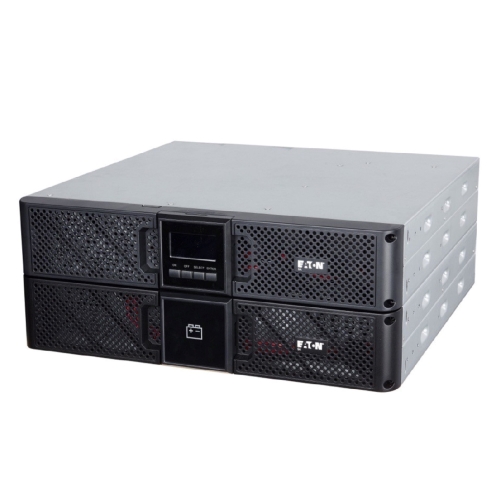

Eaton 9A UPS
The Eaton 9A UPS is a single-phase online UPS, with power ratings from 1 – 3 kVA. This UPS is available in a tower or rack form factor. The optional network card (NMC G1) will provide a rapid Ethernet connection and enables secure UPS monitoring via Winpower software. Increase battery run time for your application by adding extended battery modules (EBMs) to your UPS.
Key technologies: Wide input voltage
Applications: small and medium enterprises, IT, networking, storage and telecom, infrastructure and industrial automation.
Runtime graphs: View 9A UPS runtime graphs
Compliance with standards: CE, RoHS, KCC, TISI
| Technical Specifications | ||||||
| Models | 9A1000i | 9A2000i | 9A3000i | 9A1000iR | 9A2000iR | 9A3000iR |
| Rating (VA/W) | 1000/900 | 1800/2000 | 2700/3000 | 1000/900 | 1800/2000 | 2700/3000 |
| Format | Tower | Tower | Tower | Rack | Rack | Rack |
| Mains Input | ||||||
| Wiring | 1 phase 3wires ( L / N+PE) | |||||
| Rated Voltage | 220/230/240VAC | |||||
| Voltage Range | 176-300V 100% load, 100-176V derating to 40% load linearly | |||||
| Input Power Factor | 0.99 | |||||
| THDI | 5 % typical, 7% Max | |||||
| AC Output | ||||||
| Wiring | 1 phase L/N+PE | |||||
| Output Voltage | 220/230/240VAC | |||||
| Voltage Regulation | ±1% | |||||
| Output Frequency | 50/60 Hz | |||||
| THDv | <2% linear load <6% non linear load |
|||||
| Efficiency | ||||||
| Line Mode | 89% | 90% | 91% | 89% | 89% | 91% |
| ECO mode | Up to 95% | |||||
| Battery Configuration | ||||||
| Battery Voltage | 24V/48V/72V | |||||
| Battery Capacity | 2 x 12V/9Ah, 4 x 12V/9Ah,6 x 12V/9Ah | |||||
| Backup Time@100%load(0 EBM) | 4mins/4mins/4mins | |||||
| Backup Time@100%load(1 EBM) | 25mins | 26mins | 18mins | 25mins | 18mins | 19mins |
| Charging Current | 1.5A | |||||
| EBM | Standard model support EBMs | |||||
| Physical | ||||||
| IP protection level | IP20 | |||||
| Tower Dimension (W x H x D (mm)) | 145 x 230 x 355 | 190 x 325 x 400 | 190 x 325 x 400 | 438 x 86 x 435 | 438 x 86 x 435 | 438 x 86 x 608 |
| HMI | ||||||
| LCD DISPLAY | Segment LCD, red colour indication in case of warning & error. | |||||
| COMMUNICATION | RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker | |||||
| Connectivity Card | NMC G1/AS400 /CMC G1 modbus | |||||
| Language | English | |||||
| Software | WinPower | |||||
| Operating Environment | ||||||
| Temperature range | 0~40 °C | |||||
| Relative Humidity | 0-95%（Non-condensing） | |||||
| Operating Altitude | 0~3000m（the load derating 1 % every up 100m@1000~3000m） | |||||
| Acoustics Noise | <50dB (ISO 7779&At front 1m distance，without buzzer) | |||||
| Connections | ||||||
| Input Connections | IEC C14 | IEC C14 | IEC C20 | IEC C14 | IEC C14 | IEC C20 |
| Output connections | (4) IEC 320 C13 +(1) IEC 320 C19 |
(4) IEC 320 C13 | (6) IEC 320 C13 +(1) IEC 320 C19 |
(4) IEC 320 C13 +(1) IEC 320 C19 |
(4) IEC 320 C13 | (6) IEC 320 C13 +(1) IEC 320 C19 |
| Regulations & Certification | ||||||
| Regulations & Certification | CE, KC, TISI, IEC 62040-1,IEC 62040-2 | |||||
| Accessories | ||||||
| Accessories | RS-232 cable, Quickstart, bracket(rack), rail kit(optional), EBM cable (in EBM) | |||||
| Warranty and Service | ||||||
| Warranty and Service | 3 years | |||||
| Others | ||||||
| Others | Cold Start, Generator Compatible, easy battery replacement for Rack | |||||
