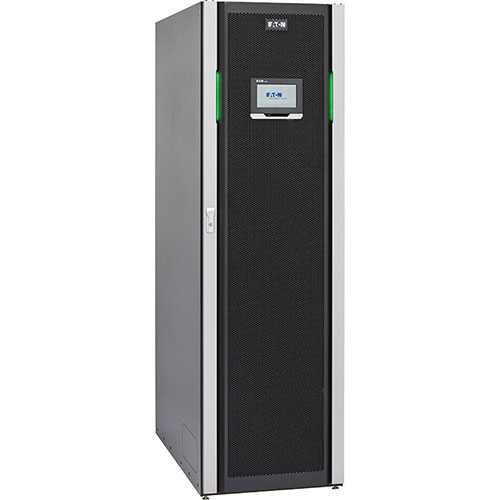

Eaton 93PM UPS
The Eaton 93PM UPS is a three phase online UPS, with power ratings from 10 – 400 kW. The UPS is available in tower form factor and is compatible with Lithium-ion UPS batteries, which are 40 percent smaller than VRLA batteries and have twice the lifespan, saving money on battery replacement costs and extra square footage for battery cabinets. This UPS comes with Unity power factor (VA=W) 1.0
Key technologies: ABM battery management, Eaton’s Energy Saver System (ESS)
Applications: Suitable for commercial buildings, medium to larger enterprise data centers. For safety, energy efficiency and a low-carbon future. Also suitable for multi-tenant and colocation. For mission critical 24×7 uptime
Compliance with standards:Â CE, RoHS
Brochure:Â Download 93PM UPS brochure
Product snapshot
10-400kW
480V, 415V, 400V, 380V, 220V, 208V
50/60 Hz
Double conversion with optional Energy Saver System (ESS)
Up to 97% in double conversion
Up to 99% in Energy Saver System
480V model: up to 8 internal power modules
208/220V model: up to 10 internal power modules
External parallel up to 8 UPSs
Tower
480V model: Internal batteries up to 50kW
415/400/380V model: Internal batteries up to 40kW
208/220V model: Internal batteries up to 60kW
External battery options for all models
Full tech specs
Power modules
10–200 kW in 5 kW increments at 208/220V
20–160 kW in 10 kW increments at 415/400/380V
20–200 kW in 10 kW increments at 480V
200–400 kW in 50 kW increments at 480V
Note: optional internal redundancy available for all models
General characteristics
Up to 99%
Up to 97%
Up to eight distributed. Some restrictions may apply; contact factory for more information.
| Input characteristics | 480V models | 400V models | 208V models |
| Voltage | 480/277V 4-wire 480V 3-wire |
380/220V 4-wire 400/230V 4-wire 415/240V 4-wire |
208/120V 4-wire 220/127V 4-wire |
| Voltage range: | +10%/-15% | +10%/-10% | +15%/-15% @ 208V
+10%/-15% @ 220V |
| Frequency range | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Power factor | > .99 | > .99 | > .99 |
| Input current distortion | < 3% @ 100% load capacity | < 3% @ 100% load capacity | ≤ 3.5% @ 100% load capacity |
| Battery options | 480V models | 400V models | 208V models |
| Battery voltage | 432V, 480V | 480V | 480V |
| Charging method | ABM® or float technology | ABM® or float technology | ABM® or float technology |
| Battery type | VRLA, AGM, Gel, Wet, Lithium, Flywheel, Super Caps | VRLA, AGM, Gel, Wet, Lithium, Flywheel, Super Caps | VRLA, AGM, Gel, Wet, Lithium |
| Output | 480V models | 400V models | 208V models |
| Voltage | 480 3-phase3-wire or 4-wire
208/120V with optional IAC-D, up to 200 kW |
380V, 400V or 415V 3-phase 3-wire or 4-wire |
208V or 220V 3-phase 3-wire or 4-wire |
| Frequency range | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Regulation | ±1% steady state | ±1% steady state | ±1% steady state |
| Voltage THD | < 1% (100% linear load) < 5% (non-linear load) |
< 1% (100% linear load) < 5% (non-linear load) |
< 1% (100% linear load) < 5% (non-linear load) |
| Load power factor range | Unity with the ability to support 0.8 leading to 0.8 lagging without de-rating | Unity with the ability to support 0.8 leading to 0.8 lagging without de-rating | Unity with the ability to support 0.8 leading to 0.8 lagging without de-rating |
| Certification | 480V models | 400V models | 208V models |
| Safety | UL 1778, cULus, UL 924 Emergency, UL 924 Auxiliary | UL 1778, cULus | UL 1778, cULus |
| EMC | FCC Part 15 subpart B class A | FCC Part 15 subpart B class A | FCC Part 15 subpart B class A |
| Surge | IEC 61000-4-5 | IEC 61000-4-5 | IEC 61000-4-5 |
Height: 74″
Depth: 42″
Width:
22”
- 20–150 kW (480V)\
- 20-120 kW (400V)
- 10–120 kW (208/220V)
32”
- 160–200 kW (480V)
- 120-160 kW (400V)
34.4″
- 10–160 kW (208/220V)
43.3″
- 10–200 kW (208/220V)
64″
- 250–400 kW (480V)
The 93PM meets the strict standards for UL 924 compliance for emergency lighting applications when ordered with an emergency lighting SKU. For more information, visit Eaton.com/UL924UPS.
• Integrated maintenance bypass
• Integrated distribution cabinet (with input and output transformer options)
• Integrated power distribution cabinet
• Integrated parallel tie cabinets
• Integrated battery cabinet (small and large)
• Wall-mounted or floor mounted bypass
• Lithium battery cabinet
• Custom options available. Contact factory for more information.
